Low-Speed 40m/min Haul-Off for Gentle Take-Off – PP Line

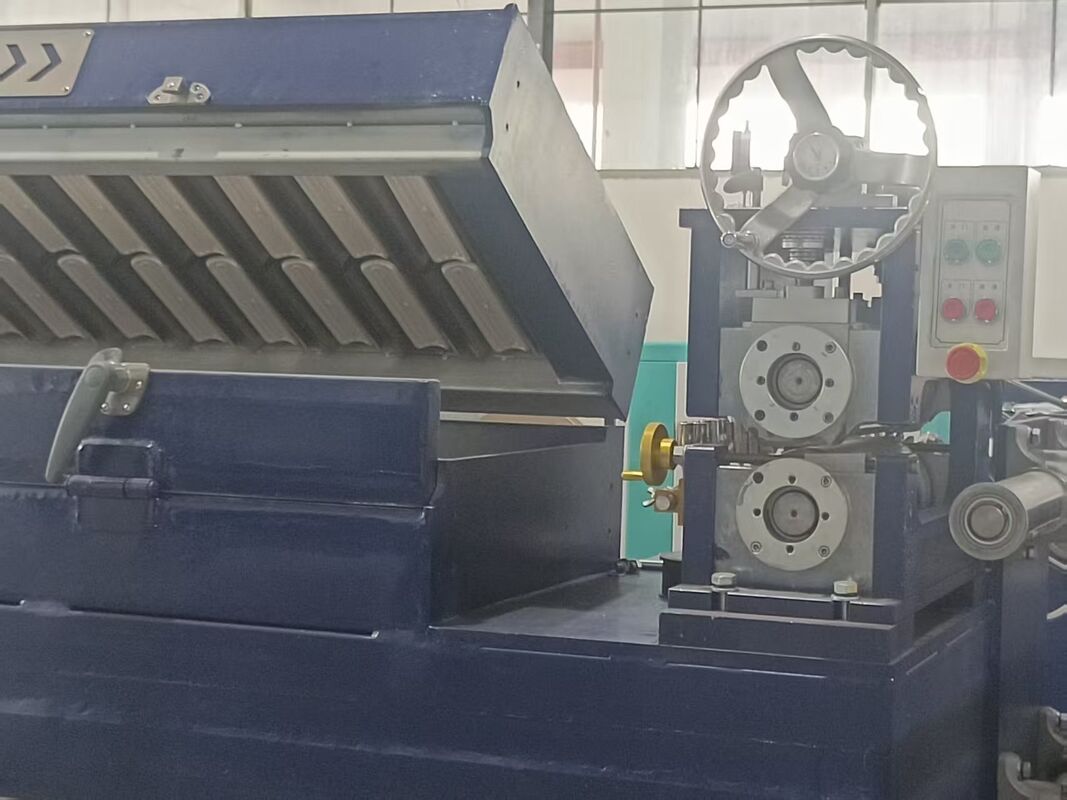

In PP strapping production, the nascent tape after extrusion is not yet fully cooled and set, requiring low-speed, gentle haul-off to avoid stretching deformation. This production line is equipped with a low-speed three-roller haul-off unit with φ268mm roller diameter, 450mm face width, chrome-plated and polished surface (hardness HRC58-60), haul-off speed range 0-40 m/min, adjustment accuracy ±1 m/min, and 5.5KW motor power. Located after the first cooling tank and before the extension box, this unit gently pulls the tape from the water tank, providing a dimensionally stable, stress-free nascent tape for subsequent high-ratio stretching.

• Low speed: 0-40 m/min range for gentle take-off of nascent tape
• High precision speed control: ±1 m/min for accurate matching with downstream units
• Chrome-plated rollers: Smooth, wear-resistant surface does not damage tape
• High hardness: HRC58-60 maintains precision over long use
• Large roller diameter: φ268mm provides sufficient wrap angle to prevent slipping
• Gentle traction: Avoids stretching deformation of not-fully-cooled tape
• Stable output: Provides dimensionally stable tape for the extension box
• Easy maintenance: Chrome surface resists sticking, easy to clean
• Linkage ready: Speed signal synchronized with main drive
• Low noise: Precision bearings and gear drive for quiet operation
