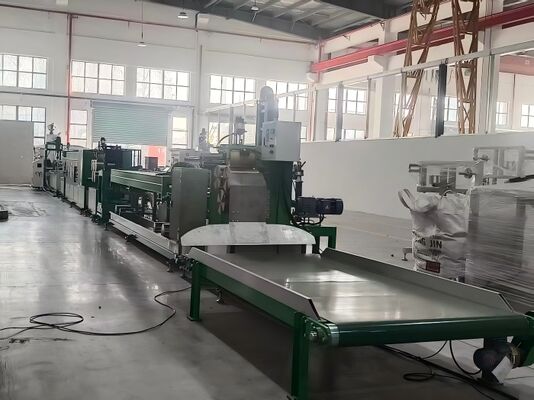

4x Productivity Multiplier Synchronous PP Strapping Line For Industrial

4x Productivity Multiplier Synchronous PP Strapping Line For Industrial
4x Productivity Multiplier Synchronous PP Strapping Line For Industrial

Ampliación de imagen :  4x Productivity Multiplier Synchronous PP Strapping Line For Industrial

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: CHUQI
Pago y Envío Términos:
Cantidad de orden mínima: 1 juego
Detalles de empaquetado: Caja de madera
Tiempo de entrega: 60 días
Condiciones de pago: T/T
Capacidad de la fuente: 100 juegos
Contacto

4x Productivity Multiplier Synchronous PP Strapping Line For Industrial

descripción
Multiplicador de productividad: ~4x Tecnología central: Cabezal de matriz divergente de flujo 1 de 4
Formulario de salida: Sincrónico de cuatro hilos Eficiencia de la inversión: Alto (entrada de una sola máquina, salida ~4x)
Eficiencia del espacio: Disposición compacta Rendimiento energético: Producto de baja energía por unidad
Complejidad de gestión: Bajo (Gestión de una sola línea)
Resaltar:

synchronous PP strapping line

,

PP strapping production line

,

high productivity PP strapping machine

The 4x Productivity Multiplier: The Synchronous PP Strapping Line
Product Introduction
This revolutionary production system transforms manufacturing efficiency. Instead of operating four separate single-line machines simultaneously, this "1-out-4" synchronous production line delivers equivalent daily output with just one integrated system. The innovative "1-out-4 flow diverging die head" evenly distributes melt from a single high-performance extruder into four streams for simultaneous shaping, cooling, stretching, and winding. Achieve nearly four times the output with only modest increases in equipment investment, floor space, and energy consumption. This strategic solution handles large-volume orders, eliminates capacity bottlenecks, and maximizes return on investment.
Main Specifications
  • Synchronous Production Principle: An integrally formed flow diverging die head, engineered with fluid dynamics principles, ensures uniform melt distribution to four independent die lips for synchronous four-strand output.
  • Capacity Design Matching: The φ80mm large-diameter extruder (maximum output 200kg/h) provides sufficient melt supply for four channels, with all subsequent processing units designed for balanced four-strand operation.
  • Space & Energy Efficiency Optimization: Significant space savings compared to four independent lines, with reduced duplication of auxiliary equipment and lower energy consumption per unit product.
  • Production Management Simplification: Operators manage one production line to monitor and control four product streams, simplifying production scheduling, quality monitoring, and inventory management.
Technical Parameters
Parameter Category Parameter Item Specification / Description
Core Output Synchronous Production Quantity 4 strands
Core Output Single Strand Std. Capacity Ratio ~95-100% of a traditional single line
Core Output Theoretical Productivity Increase ~280%-300% increase vs. single line
Extrusion Supply Extruder Specification φ80mm, L/D 28:1
Extrusion Supply Maximum Output 200 kg/h
Matching Design Cooling Water Tank Width 0.8 meters (accommodates 4 strands)
Matching Design Winder Stations 4 independent stations
Efficiency Metrics Operator Requirement Can be reduced by ~50-60% (vs. running 4 independent single lines)
Efficiency Metrics Floor Space Saving Can save ~30-40% (vs. layout of 4 independent single lines)
Frequently Asked Questions
Q1: Compared to four separate single machines, what are the real advantages of "1-out-4" besides saving space?
A1: The core advantages are investment efficiency, operational cost, and control consistency. 1) Lower Investment: Purchase one large extruder and complex die head instead of four complete extrusion and control systems. 2) Better Energy Efficiency: One large motor typically runs more efficiently than four smaller ones with less heat loss. 3) Unmatched Consistency: All four strands originate from the same melt source and experience identical process conditions, ensuring superior consistency in performance and appearance. 4) Simpler Maintenance: Only one set of core equipment requires maintenance.
Q2: If one die lip clogs or one strap breaks, will it affect the other three? Does the whole line need to stop?
A2: Since the four strands enter independent channels after divergence, physical breakage of a single strap doesn't directly affect the others. However, for production management and quality assurance, a brief full-line stop is recommended. A clog may indicate potential issues within the die head flow channels, and continuing production of remaining strands leads to material waste. Our system allows independent control of single winding shafts - only the faulty shaft needs stopping during break handling. For thorough troubleshooting, a brief full-line stop remains the most efficient approach.

etiqueta:

synchronous PP strapping line,

PP strapping production line,

high productivity PP strapping machine
